The clutch will have been adjusted as the old belt wore and stretched. When you fit a new belt you must re-adjust the clutch to suit it.

Merry Tiller belts etc.

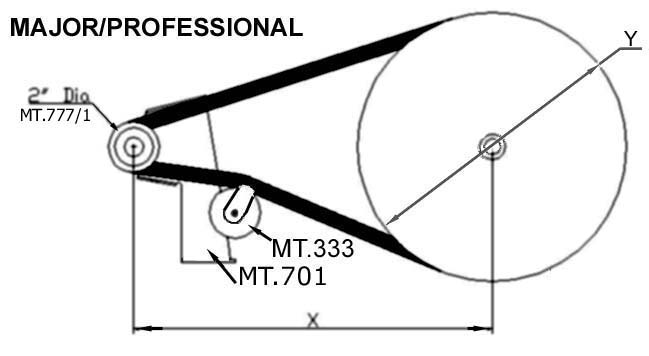

Please check engine pulley diameter and dimensions X and Y on the drawing below. We stock the standard rubber cased type (economy) and cloth covered drive belts specifically recommended for pre 1983 and US Merry Tillers. Atco used "moulded notch" type belts from 1983 so we supply this type of belt for 1983 onwards machines. While stocks last, some genuine Atco/Webb belts, may be sent. If you are unsure of which model you have, check the History page of the website. Whilst models of the same era tend to look alike, the four distinct eras, front fuel tank, rear fuel tank circa 1968 to 78, 78 to 83 and 83 onwards machines, are very different. Important, as belts changed with each era.

Part No.

Description Price Special Notes.
MT.701 Steel guide for belt, fits Major/Professional 58-78 without reverse £12 May not fit if non standard engine substituted.
710-2350 2" dia crankshaft pulley, fits International model, cast iron, double 2" pulley. Could be used instead of the single MT.777 pulley but a lot wider on the shaft, so accessory vee-plex etc, can't be used alongside it. Few only at £25 including postage. Only fits the original type 3/4" dia crankshaft with 3/16" keyway. Email me if you want one.
MT.3515 2"x2.7" dia crankshaft pulley, fits early Titan and early GT 1965-78, cast iron, stepped double pulley. Slightly smaller diameter on the high speed than the original, and has a 6mm wide keyway, but as near as I can get. Made to order, £35 including postage. Only fits the original type 3/4" dia crankshaft with 3/16" keyway. Email me if you want one.
MT.333 Clutch skate wheel fits Major to 83, Wizard/Cadet/B66 and Professional £12.50
MT.3594/6 Clutch jockey pulley rebuild kit for Titan to 83, Kit consists of two needle roller bearings and grease seal. £15 Please ensure that the axle pin is OK before ordering as it is not available.
MT.329 Drive Belt fits Major with front mounted fuel tank 58-68 and Professional 61-onwards. Also fits Major, Super Major 78 to 84 and Titan low speed 78-84 (AC3414 to AC3444)

Cloth £20

If X on drawing is 13 inches and Y 10.5 inches or if X on drawing is 15 inches and Y 8.5 inches, use this belt. Provided engine pulley is 2 inch diameter.
MT.3371 Drive Belt fits Majors with fuel tank at rear of engine to 78, Titan low speed pulleys 68-78 and Super Major 76-78. Also fits US made Suburban model previously sold as Westmac and Allen Tiller (see photo on my home page).

Cloth £20

If X on drawing is 14 inches and Y 10.5 inches use this belt. Provided engine pulley is 2 inch diameter.
MT.2292 Drive belt fits Titan and 5hp GT high speed pulleys. (Shorter belt) 68-78 Cloth £20 High speed engine pulley should be 3 inches in diameter. Will not fit later Titans with reverse gear.
EC.0399A Drive belt fits 7hp Titan GT Model AC3454 high speed pulleys. (Shorter belt) 78-83 Cloth £20 Will not fit 5hp Titans and GTs.
W25496 Moulded notch Drive Belt for the "plastic guard type" Webb/Atco Major, Centaur, Super Major, Spartan & Titan (low speed) 84-90 Notched £20 This is the forward drive belt. If X on drawing is circa 15 inches and Y 8.5 inches use this belt.
W27162 Moulded notch Reverse Drive Belt for the "plastic guard type" Webb/Atco Centaur and Super Major Notched £20 This is the reverse drive belt,  it fits on a pulley attached to the camshaft.
W27295 Moulded notch High speed Drive Belt for the "plastic guard type" Webb/Atco Titan Special offer, a large number of genuine Atco Titan belts have turned up in Atco's stores, we have bought them all and can offer them at a special, low price. Notched £6 This belt fits on the 3.25" pulley driving the 6" one.
W25629 Drive Belt for the Cadet, Webb Wizard and Qualcast B66. Also fits 1978-80 Titan with 3" dia high speed pulley Notched £20 If X on drawing is 13.75 inches and Y 8.5 inches use this belt. Provided engine pulley is 2 inch diameter.
MT.2172 Drive Belt for the US made International Tiller, from 2009 known as the Super Major Pro Also fits early Sickle Mower with blade driven by a crankshaft and connecting rod, 18" Rotary Mower attachment and Qualcast Cultimatic except B66. £20 The International has double v-belt drive so two of these belts per machine. US part number 608-0020. Qualcast part number L17249.

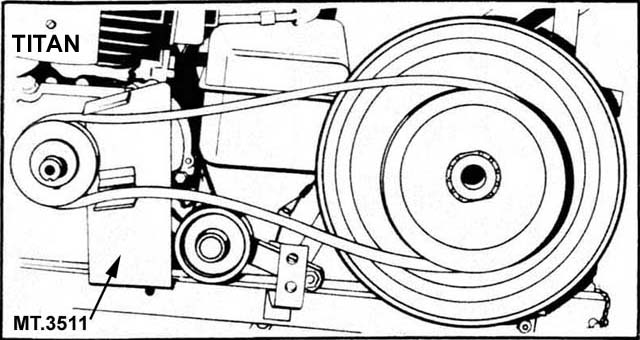

MT.3511 Guide for belt, fits Titan 66-78 £12 May not fit if non standard engine substituted.

MT.329e

Economy drive belt for early Major/Professional £12 This is  the same size as MT.329 but is not cloth covered.
MT.3371e

MT.2292e

Economy drive belts for Major and Titan 68-78 with fuel tank at rear of engine



£12 Rubber cased belts, replace those listed above with the same numbers
Belt Type
